How Does Central Air Work?

When the summer heat sets in, few things feel more essential than a reliable central air conditioning system. But while we enjoy the cool air it provides, many of us don’t really understand how it works behind the scenes. What exactly happens when you set the thermostat a few degrees lower? How does the system pull hot air from your home and replace it with refreshing cool air?

In this guide, we’ll take a closer look at the inner workings of central air conditioning. From the key components that make it all possible to a step-by-step breakdown of the cooling process, you’ll learn how central air keeps your home comfortable.

The Basic Components of a Central Air System

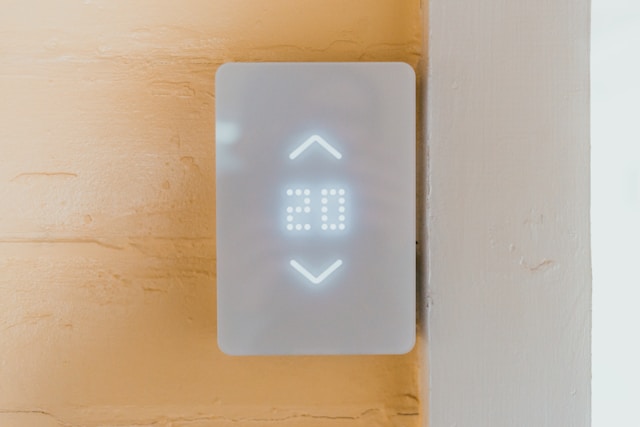

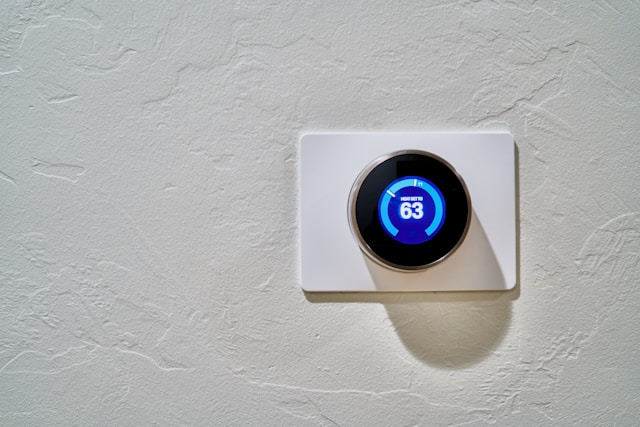

Thermostat

The thermostat is the brain of the central air system. It monitors the indoor temperature and activates the system when the temperature rises above your set comfort level. Modern thermostats are often programmable or smart, allowing users to set schedules or control the temperature remotely using a smartphone.

When the thermostat signals that cooling is needed, it communicates with the central unit to start the cooling cycle. Without a thermostat, the system wouldn’t know when to turn on or off, making it an essential component.

Air Handler and Blower

The air handler is located inside the home and contains the blower (or fan). This component is responsible for pushing cooled air through the ductwork and into various rooms. It also pulls warm air from the house to be cooled by the system.

Depending on the design, the air handler may be integrated with the furnace or exist as a standalone unit. The blower must be strong enough to ensure consistent airflow throughout the entire house.

Ductwork

Ducts are the network of passages that distribute air throughout the home. Supply ducts carry cooled air to rooms, while return ducts bring warm air back to the system to be cooled again. Proper duct design and sealing are crucial for energy efficiency and comfort.

Leaky or poorly insulated ducts can lead to energy loss and uneven cooling. Therefore, regular inspection of ductwork is important for maintaining system performance.

Evaporator Coil

Located inside the indoor unit, usually near the air handler, the evaporator coil is filled with a cold refrigerant. As warm air from the house passes over the coil, the refrigerant absorbs heat from the air, effectively cooling it.

The coil can become dirty over time, reducing its efficiency. Keeping the coil clean ensures that the system can absorb heat effectively and maintain consistent cooling.

Condenser Unit

The condenser unit is installed outside the home and works hand-in-hand with the evaporator coil. It receives the heated refrigerant from the indoor coil and releases the heat to the outside air. This process cools the refrigerant so it can cycle back indoors and absorb more heat.

The condenser unit includes a fan, a compressor, and a coil. Because it’s exposed to the elements, it’s important to keep it clear of debris and ensure there’s enough space around it for proper airflow.

Refrigerant

Refrigerant is the fluid that cycles through the system, absorbing heat from inside the house and releasing it outside. It changes between a liquid and gas as it travels through the evaporator and condenser coils.

This substance is essential to the cooling process, and its level must be maintained within a specific range. If refrigerant levels are too low—often due to a leak—cooling efficiency drops significantly and can damage the compressor.

How Central Air Works: Step-by-Step

1. Thermostat Detects the Need for Cooling

The process begins when the indoor temperature rises above the desired setting on your thermostat. The thermostat sends a signal to the central air system, instructing it to begin the cooling cycle.

This simple command sets off a chain reaction, activating both the indoor and outdoor components of the system. Smart thermostats can optimize this process by learning your habits and adjusting the temperature automatically for better energy efficiency.

2. Warm Air is Pulled into the System

Once activated, the blower inside the air handler begins drawing warm air from inside the home. This air travels through the return ducts and passes through a filter to remove dust, pollen, and other particles.

Filtering the air not only improves indoor air quality but also protects the internal components of the HVAC system from buildup and damage.

3. Heat is Absorbed by the Evaporator Coil

After filtration, the warm air moves over the evaporator coil. This coil contains cold refrigerant, which absorbs the heat from the air as it passes by. The air, now much cooler, is sent back through the supply ducts and into the living spaces.

At the same time, the refrigerant inside the coil warms up as it absorbs the heat and begins to evaporate, turning from a liquid to a gas.

4. Refrigerant Carries Heat to the Outdoor Unit

The now-warm, gaseous refrigerant travels through refrigerant lines to the condenser unit outside the house. The compressor inside the condenser pressurizes the gas, which raises its temperature even further, making it easier to release the heat.

This transfer of heat away from the indoor air is what makes the central air system effective in maintaining a cool indoor environment.

5. Heat is Released by the Condenser Coil

In the outdoor condenser coil, the refrigerant releases the absorbed heat into the outside air. The condenser fan blows air across the coil, helping to dissipate the heat efficiently.

As the refrigerant cools down, it condenses back into a liquid and is sent back to the evaporator coil indoors to repeat the cycle.

6. Cooled Air Circulates Back into the Home

With the heat removed, the cooled air is pushed through the duct system by the blower fan and distributed evenly throughout the house. The cycle continues until the thermostat detects that the set temperature has been reached.

Once the desired temperature is achieved, the thermostat turns the system off, and it remains idle until cooling is needed again. This continuous loop ensures consistent comfort during hot weather.
